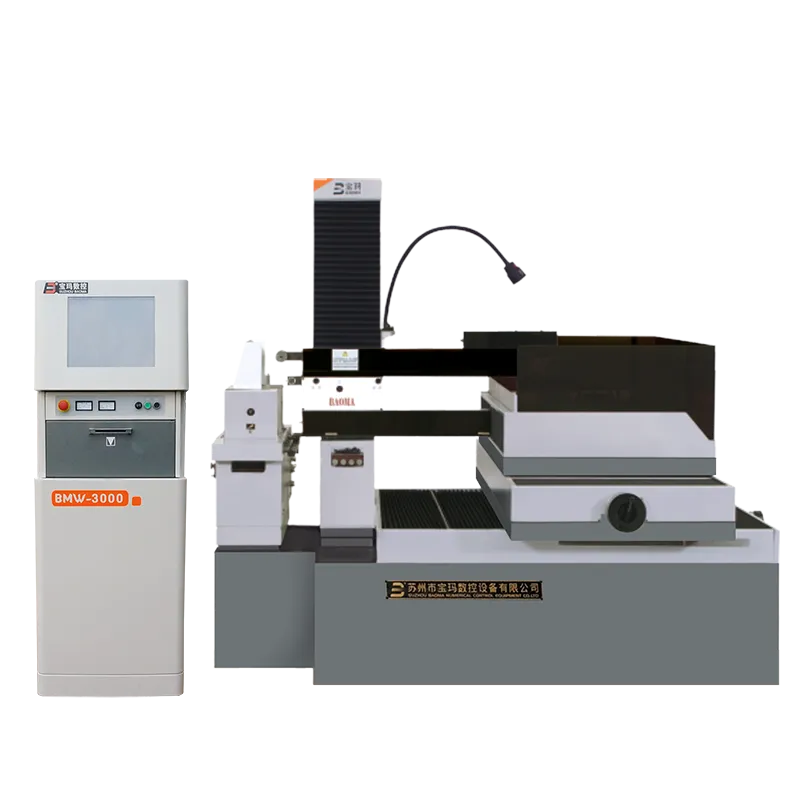

DK7763
Metal 3D Printing Post Processing
Precise EDM Wire Cut Machine
for Additive Manufacturing Post Processing
Our electro-erosion wire cut machines are designed for cutoff of the metal additive manufacturing parts with various shapes and sizes. These machines allow you to process parts, made of different brands of steel, high-strength composite alloys, titanium, graphite and more.
Features

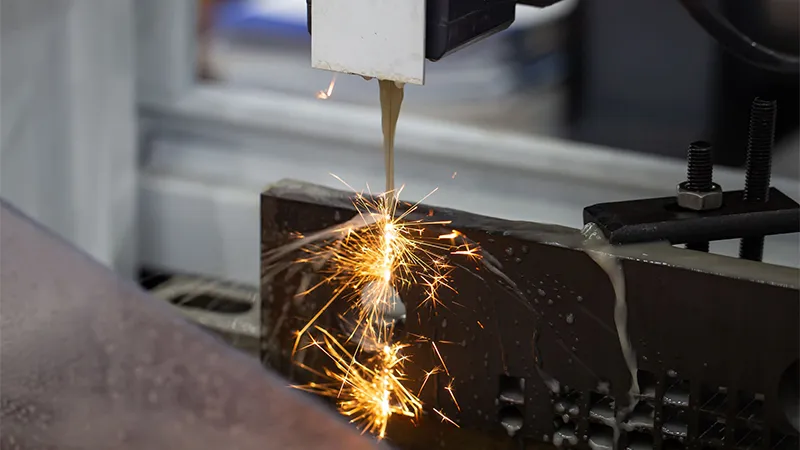

HIGH PRECISION & ACCURACY
EDM Wire Cut can achieve extremely tight tolerance. The process minimizes heat distortion, allowing for precise cuts with smooth surface finishes, sometimes eliminating the need for further polishing.
MATERIAL FLEXIBILITY
EDM Wire Cut machine can machine a wide range of electrically conductive materials. It can work with various metals, including brass, copper, molybdenum, aluminium, and tungsten, as well as some ceramics and composites. Also suits heat-sensitive materials.

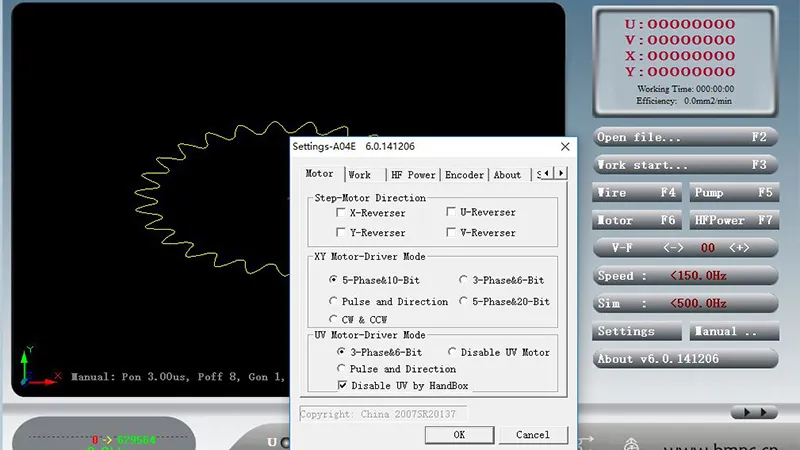

OPERATION EASE
User-friendly operate interface. Complicated and very minute shapes can be efficiently machined by unskilled operators using programs alone. On top of that, the machining time required can be accurately predicted to facilitate process and delivery control.
Technical Data
Specifications:
| XY Axis Travel: | 800 × 630mm |
| Worktable Size: | 1100 × 660mm |
| Cutting Thickness: | Three options, Max. 500 mm (D type), Max. 800 mm (R type), Max. 1000 mm (I type) |
| Taper Cutting: | ± 3° (Thickness ≤ 100 mm) |
| Loading Weight: | Max. 3000 kg |
| Machine Weight: | 4500 kg |
Processing Parameters:
| Cutting Precision: | 0.015 mm |
| Machining Efficiency: | 150 mm2/min |
| Work Current: | Max. 6 A |
| Work Power: | 3-phase 380 V±5%, 50 Hz |
Configurations:
| XY Axis Control: | Step control |
| Z Axis Elevation Control: | Automated |
| Screw and Guide Rail: | Precision ball screw/ Precision linear guide rail |
| Wire Type: | Molybdenum wire |
| Wire Feeding System: | Converter control |
| Hand Cranked Pulse: | Optional |
| Working Liquid: | Water-based liquid |
| Working Liquid Filter System: | Multiple filtration |
| Cabinet: | BMW3000 |
| Machine body: | Integrated machine body, Meehanite cast iron (HT250) |
